SteREO Discovery Microscope Systems

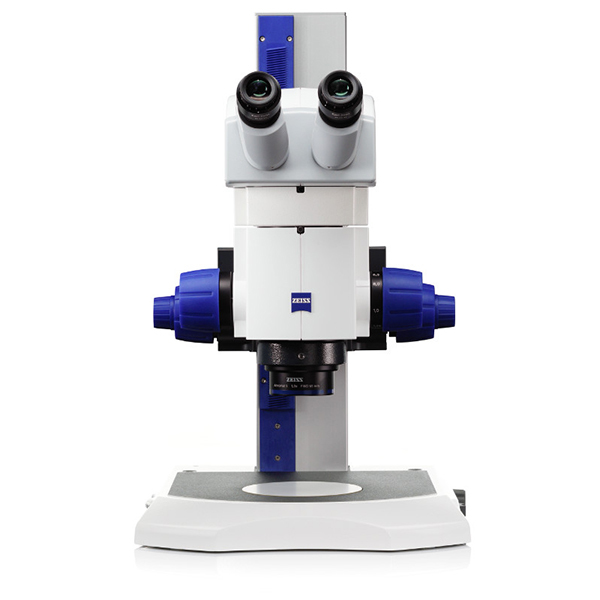

New high-performance optics – this is the outstanding performance feature that Carl Zeiss has focused on with the development of its latest entry level model in the sophisticated stereomicroscope class. The SteREO Discovery.V8 impresses with enhanced resolution, increased contrast and, most notably, a perceptibly improved stereoscopic impression. As a result, it offers a image brilliance that is without equal in this class of instrument. For a visible increase in information in all biomedical and industrial applications, the time has come for a new view of things.

Providing the ability to change rapidly from shadowfree annular illumination to lateral oblique light, contrast optimization through turning of oblique light around the specimen, continuous rotation of the illumination for a stereoscopic impression of the object in the live image – and all this at the push of a button! The list of new contrasting possibilities offered by the VisiLED illumination system with its white LEDs is endless!

Specifications:

• Apochromatic zoom optics
• Maximum NA of 0.116
• Manual 8:1 zoom
• Seamless integration into the modular system of SteREO microscopes
• Manual or motorized focus
• Manual or motorized X-Y stages
• Illumination and contrast methods based on cold light or LED

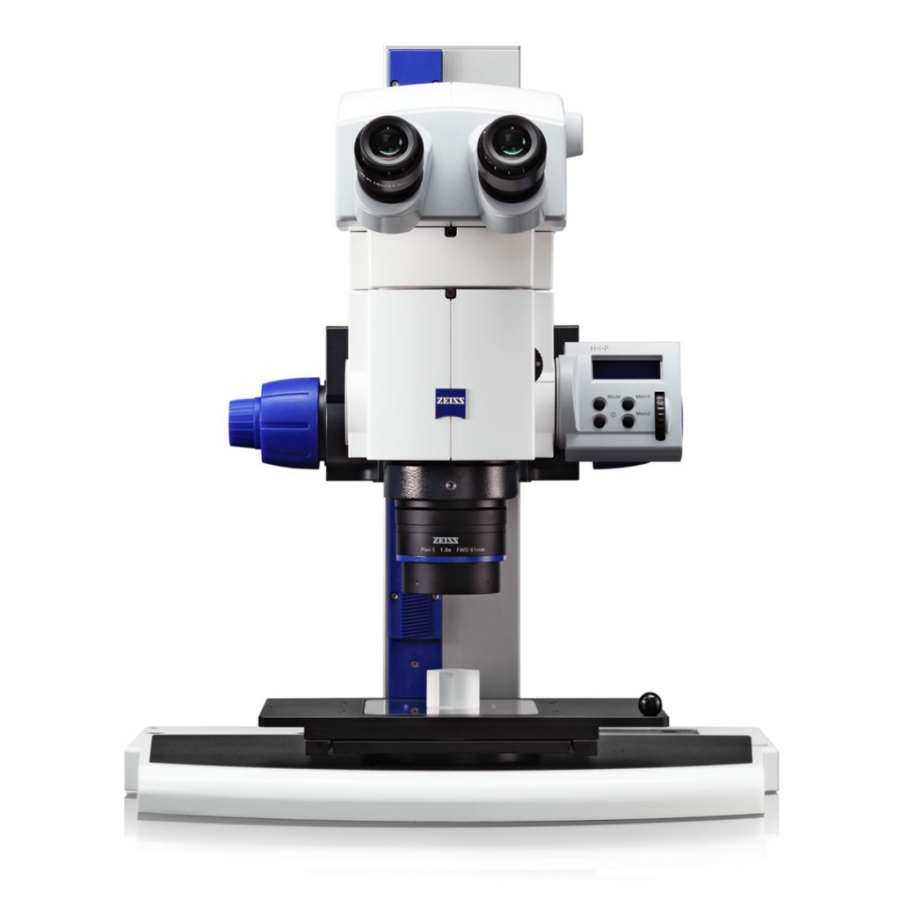

New dimensions in operating comfort – with SteREO Discovery.V12. Carl Zeiss is expanding the borders of stereomicroscopy with increase depth of field, excellent color reproduction, high-contrast images and significantly more image information. New patented optics provide improved resolution and contrast. The innovative operating concept SyCoP (SystemsControl Panel) combines all essential functions of a stereomicroscope in a single handy operating unit. The sum of these advantages result in increased comfort and efficiency in the laboratory. With impressive stability and exceptionally large specimen room, SteREO Discovery.V12 is setting new standards in stereomicroscopy – particularly for applications in materials research, quality control, biology and medical research.

Specifications:

• Apochromatic zoom optics
• 0.8×–10× motorized zoom
• Maximum NA of 0.144
• Electronic click stops
• Double-iris diaphragm
• Selectable zoom speed
• Information on the system’s magnification, resolution, depth of field, and field of view

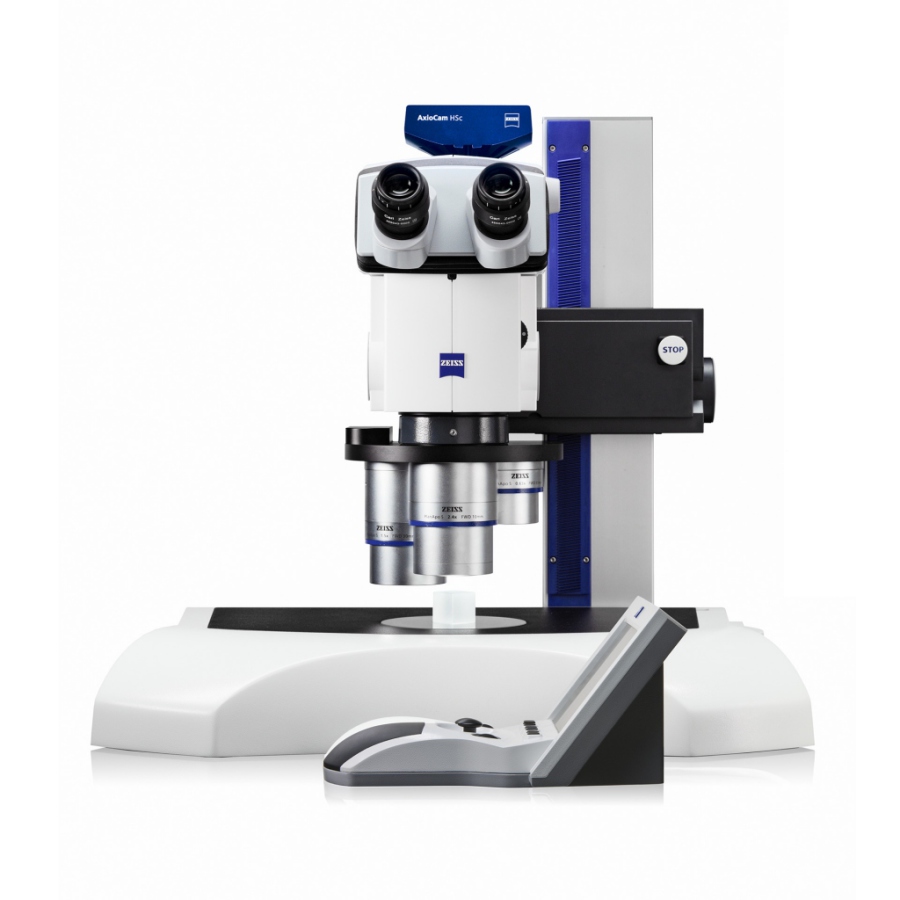

There’s a new performance standard in the demanding world of stereomicroscopy: Zoom Factor 20. The factor for the largest spectrum between overview and detail magnification. The microscope: SteREO Discovery.V20. A Carl Zeiss design. And a research instrument with which the pioneer of the CMO principle (Common Main Objective) has once again broken new ground for the future of stereomicroscopy after the telescope principle. The development of the SteREO Discovery.V20 has exceeded the limits of conventional modes of action. Founded on a new technological base and integrated into the SteREO* generation series from Carl Zeiss, SteREO Discovery.V20 is highly impressive and boasts a superior performance profile. For maximum precision and considerably more freedom in biology, medical and industrial labs.

Specifications:

• Apochromatic zoom optics
• 0.75×–15× motorized zoom
• Maximum NA of 0.144
• Electronic click stops
• Double-iris diaphragm
• Selectable zoom speed
• Information on the system’s magnification, resolution, depth of field, and field of view
• Planapochromatic corrected microscope bodies with a zoom range of 20:1
• High end magnification of up to 345x (with eyepiece 10x)
• Mmaximum resolution of 1000LP/mm (with objective PlanApo S 2.3x)
• Excellent 3D-effect up to the highest magnification
• Comfortable, securely reproducible operational and control concept with SyCoP
• Seamless integration into the modular system of the SteREO Discovery generation
